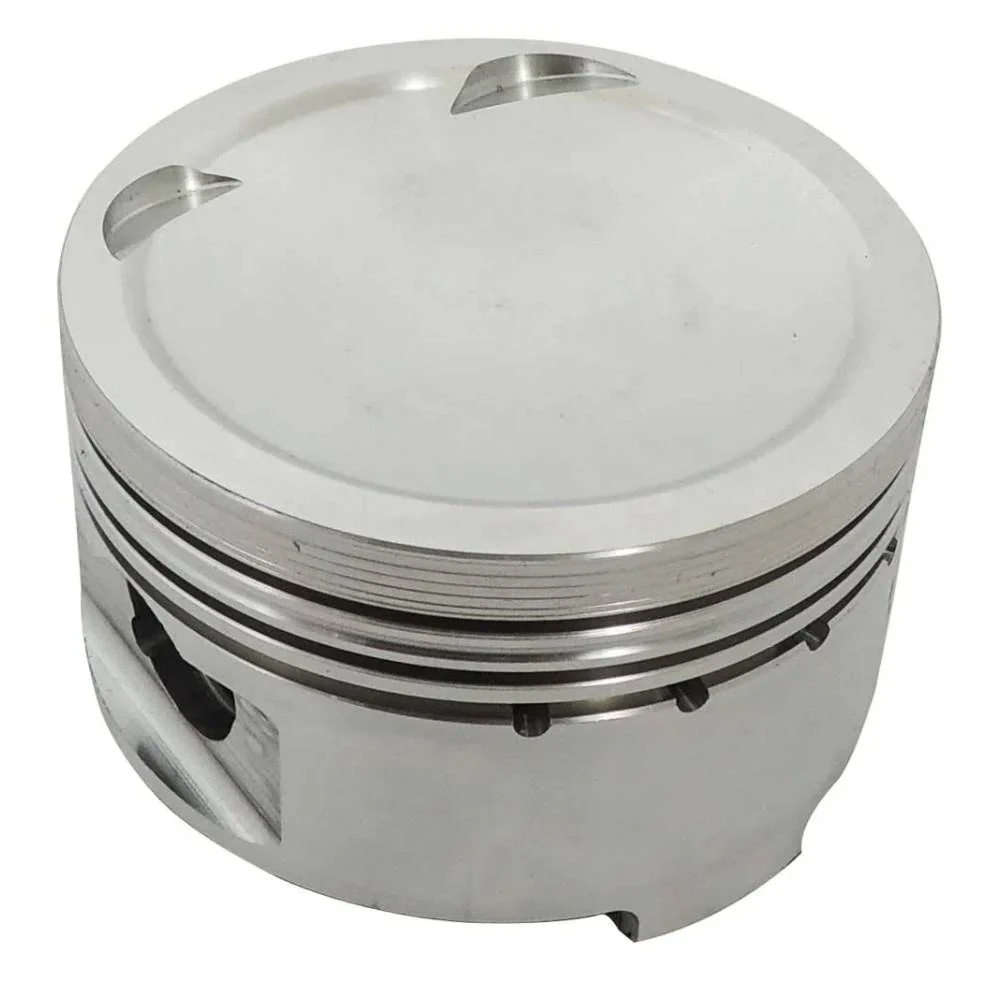

Forged piston 82,5mm VW 2.5L Jetta MK5 (Single)
HomeStore

Forged piston 82,5mm VW 2.5L Jetta MK5 (Single)

Forged piston 82,5mm VW 2.5L Jetta MK5 (Single)

For VW‚ 2.5L Jetta MK5

Nominal bore diameter: 82,5mm

Recommended bore to piston to bore clearance: 0.08mm (For nitrous or extreme applications, consult your builder)

Piston ring grooves: 1.5 mm / 1.5 mm / 2.0mm

Compression height: 29.3mm.

Dish volume: 12.7cc

Pin offset: 1.10mm.

Material: Forged aluminum 4032 T6.

Average piston weight (unit, without pin):‚ 329g (11.60 oz).

Rated for 1000hp.

Innovative high performance piston skirt design that provides:

1. Smaller piston to bore clearance‚

2. Less noise

3. Better ring seal

4. Higher power

5. Durability


Features:

Anti detonation grooves: protect the top ring by disrupting detonation waves and reduce piston-cylinder contact in high temperatures and engine RPM conditions.

Accumulator groove: accumulates residual combustion gasses reducing top ring flutter and improving seal.

Pin oil lubrication by broaches and oiler to reduce friction and increase durability.

        $48.96

        Original: $139.90

        -65%
        Forged piston 82,5mm VW 2.5L Jetta MK5 (Single)—

        $139.90

        $48.96

        More Images

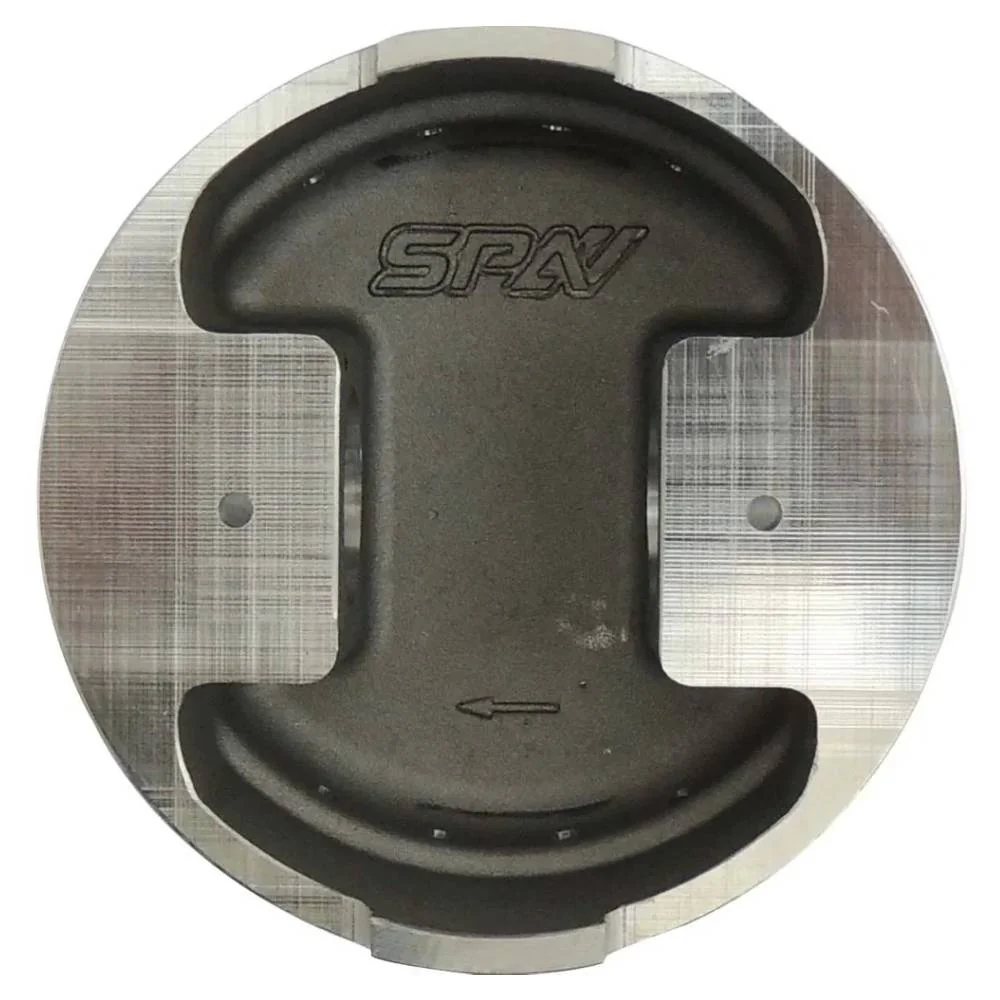

        Forged piston 82,5mm VW 2.5L Jetta MK5 (Single) - Image 2

        Forged piston 82,5mm VW 2.5L Jetta MK5 (Single)

        For VW‚ 2.5L Jetta MK5

        Nominal bore diameter: 82,5mm

        Recommended bore to piston to bore clearance: 0.08mm (For nitrous or extreme applications, consult your builder)

        Piston ring grooves: 1.5 mm / 1.5 mm / 2.0mm

        Compression height: 29.3mm.

        Dish volume: 12.7cc

        Pin offset: 1.10mm.

        Material: Forged aluminum 4032 T6.

        Average piston weight (unit, without pin):‚ 329g (11.60 oz).

        Rated for 1000hp.

        Innovative high performance piston skirt design that provides:

        1. Smaller piston to bore clearance‚

        2. Less noise

        3. Better ring seal

        4. Higher power

        5. Durability


        Features:

        Anti detonation grooves: protect the top ring by disrupting detonation waves and reduce piston-cylinder contact in high temperatures and engine RPM conditions.

        Accumulator groove: accumulates residual combustion gasses reducing top ring flutter and improving seal.

        Pin oil lubrication by broaches and oiler to reduce friction and increase durability.

              Product Information

              Shipping & Returns

              Description

              For VW‚ 2.5L Jetta MK5

              Nominal bore diameter: 82,5mm

              Recommended bore to piston to bore clearance: 0.08mm (For nitrous or extreme applications, consult your builder)

              Piston ring grooves: 1.5 mm / 1.5 mm / 2.0mm

              Compression height: 29.3mm.

              Dish volume: 12.7cc

              Pin offset: 1.10mm.

              Material: Forged aluminum 4032 T6.

              Average piston weight (unit, without pin):‚ 329g (11.60 oz).

              Rated for 1000hp.

              Innovative high performance piston skirt design that provides:

              1. Smaller piston to bore clearance‚

              2. Less noise

              3. Better ring seal

              4. Higher power

              5. Durability


              Features:

              Anti detonation grooves: protect the top ring by disrupting detonation waves and reduce piston-cylinder contact in high temperatures and engine RPM conditions.

              Accumulator groove: accumulates residual combustion gasses reducing top ring flutter and improving seal.

              Pin oil lubrication by broaches and oiler to reduce friction and increase durability.
