SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS
HomeStore

SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS

SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS

  • Number of injectors: 8

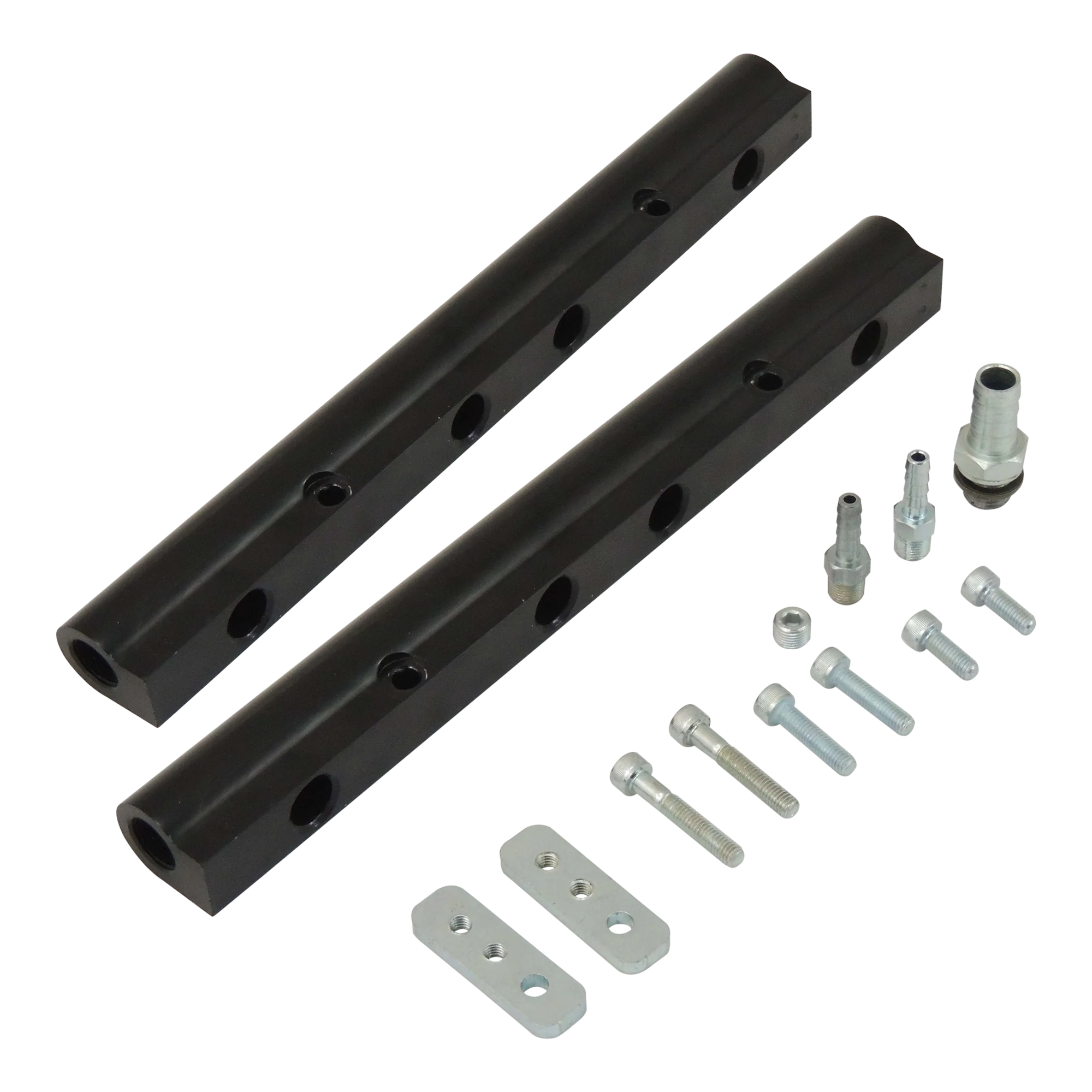

  • Fuel rail: Anodized billet aluminum (black)
  • Fuel rail connections: 3/8'' NPT

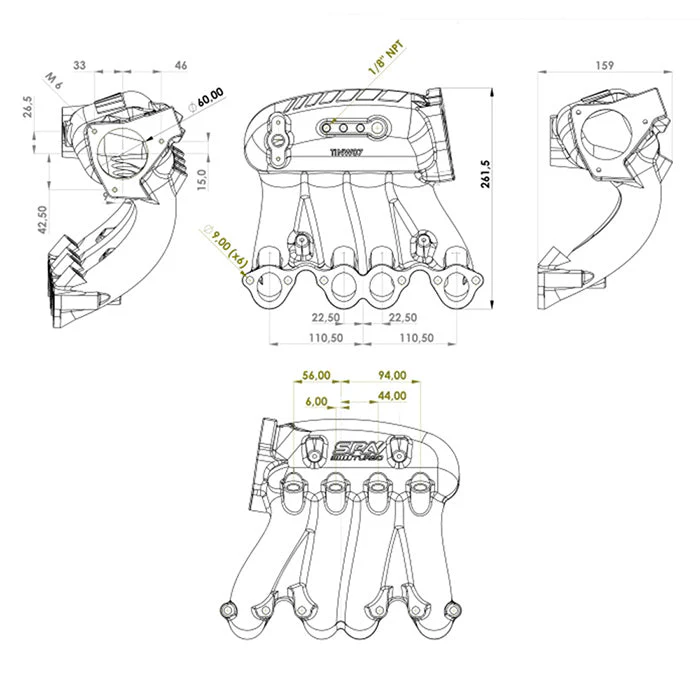

  • Throttle body: VW MI (part number 026133064B) Check technical drawing.
  • TBI position: rear
  • Max working capacity: 10bar (145psi)
  • Internal volume: 2.32L
  • Material: Cast aluminum
  • Application: VW 8V engine (reverse flow cylinder head)

ATTENTION: changes may be required to install this intake manifold.

$419.90
SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS—
$419.90

More Images

SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS - Image 2
SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS - Image 3
SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS - Image 4
SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS - Image 5
SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS - Image 6
SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS - Image 7
SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS - Image 8
SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS - Image 9
SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS - Image 10
SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS - Image 11

SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS

  • Number of injectors: 8
  • Fuel rail: Anodized billet aluminum (black)
  • Fuel rail connections: 3/8'' NPT
  • Throttle body: VW MI (part number 026133064B) Check technical drawing.
  • TBI position: rear
  • Max working capacity: 10bar (145psi)
  • Internal volume: 2.32L
  • Material: Cast aluminum
  • Application: VW 8V engine (reverse flow cylinder head)

ATTENTION: changes may be required to install this intake manifold.

Product Information

Shipping & Returns

Description

  • Number of injectors: 8
  • Fuel rail: Anodized billet aluminum (black)
  • Fuel rail connections: 3/8'' NPT
  • Throttle body: VW MI (part number 026133064B) Check technical drawing.
  • TBI position: rear
  • Max working capacity: 10bar (145psi)
  • Internal volume: 2.32L
  • Material: Cast aluminum
  • Application: VW 8V engine (reverse flow cylinder head)

ATTENTION: changes may be required to install this intake manifold.
